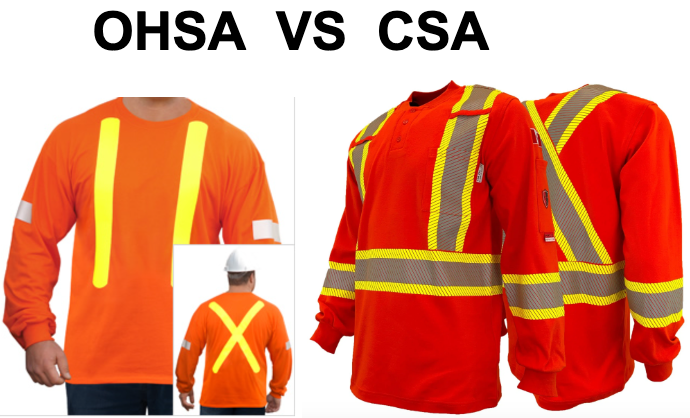

Whats the difference between CSA Z96-22 vs. the OHSA Regulation 213/91 Sec 69.1(1)(4) High Visibility Standard ?

1. CSA Z96-22 High Visibility Standard (Canada)

The CSA Z96-22 standard is developed by the Canadian Standards Association (CSA) and outlines the minimum requirements for high-visibility safety apparel. It is widely used across Canada in various industries, including construction, roadwork, and manufacturing.

Key Points of CSA Z96-22:

• Purpose: The CSA Z96-22 standard is designed to ensure that workers are clearly visible to prevent accidents, especially in low-visibility conditions (e.g., night shifts, poor lighting, or high-risk work environments like highways).

• Classification: The standard defines three classes of high-visibility clothing based on the level of exposure and the visibility needs:

  • Class 1: Low-risk environments (e.g., parking lots, warehouses). The garments are minimally reflective and designed for situations where there is limited vehicle traffic.
  • Class 2: Moderate-risk environments (e.g., construction sites, roadwork). These garments have more reflective material than Class 1, providing visibility from a greater distance.
  • Class 3: High-risk environments (e.g., highways, night-time construction). Class 3 garments have the most extensive reflective material and ensure maximum visibility in all directions.

• Requirements:

  • Reflective Materials: The reflective tape or material must be a minimum of 50mm (2 inches) wide to be effective.
  • Placement: Reflective strips must be placed on key areas such as the torso, arms, and legs to ensure visibility from multiple angles.
  • High-Visibility Colors: The garments must be made from fluorescent colors such as yellow-green, orange, or red, with reflective strips that enhance visibility.
  • Retroreflective Tape: The reflective material must be retroreflective, meaning it reflects light back towards its source (e.g., vehicle headlights), which is crucial for night-time visibility.

• Key Focus: Visibility in varying work environments, with guidelines for both day and night work.

2. OHSA Regulation 213/91 Sec 69.1(1)(4) (Ontario, Canada)

The OHSA Regulation 213/91 Section 69.1(1)(4) is part of the Ontario Occupational Health and Safety Act (OHSA) and specifically governs the use of high-visibility clothing for workers in Ontario. Section 69.1(1) outlines the requirements for protective clothing and equipment to ensure worker safety in hazardous environments.

Key Points of OHSA Regulation 213/91 Sec 69.1(1)(4):

• Purpose: This section of the OHSA is focused on worker safety in relation to visibility, particularly in situations where workers are exposed to traffic or moving machinery, which could pose a hazard if workers are not easily visible.

• Specific Requirement (69.1(1)(4)): Section 69.1(1)(4) focuses on the need for workers to wear high-visibility clothing when working in high-risk areas, such as those near moving vehicles or equipment. It does not go into detail about the exact specifications for the reflective materials or garment classifications, but it does require that workers must be visibly identified in environments where visibility is crucial for safety.

• General Requirements: OHSA does not specify exact classifications or detailed guidelines for high-visibility clothing like CSA does. Instead, it focuses on the need for workers to wear appropriate protective clothing that ensures adequate visibility. The specifics of the reflective material and placement can be interpreted based on the context of the worksite and the level of risk, often referring to standards such as CSA Z96 for more precise guidance.

Key Differences Between CSA Z96-22 and OHSA Regulation 213/91 Sec 69.1(1)(4):

1. Scope and Specificity:

   • CSA Z96-22: Provides detailed specifications for high-visibility clothing, including reflective material types, placement, and classification (Class 1, 2, 3), as well as guidelines for fluorescent colors and retroreflective tape.
   • OHSA Regulation 213/91 Sec 69.1(1)(4): This section in the Occupational Health and Safety Act is more general. It outlines that high-visibility clothing is required for high-risk environments but doesn't provide the same level of detail as CSA Z96. It refers to the necessity of appropriate clothing but leaves the specifics to be interpreted based on the situation and the hazardous environment.

2. Level of Detail:

   • CSA Z96-22 provides detailed information on how much reflective material is required, the placement of the material, and the types of garments that should be worn in different environments (e.g., Class 1 for low-risk, Class 3 for high-risk).
   • OHSA Regulation 213/91 Sec 69.1(1)(4) does not go into such specifics. It simply mandates that appropriate high-visibility clothing must be worn in environments where workers are exposed to risks from moving vehicles, equipment, or machinery. The specifics of what qualifies as "appropriate" are often left to the CSA Z96 standard or similar regulations.

3. Regulatory Authority:

   • CSA Z96-22: The CSA standard is an industry standard that provides guidelines and specifications for high-visibility safety clothing. It's voluntary but is widely adopted across various industries as a best practice and can be referenced in legal requirements.
   • OHSA Regulation 213/91 Sec 69.1(1)(4): This is a provincial law in Ontario that mandates safety requirements for workers. It requires compliance with legal regulations that govern worker safety, and it refers to the need for appropriate protective clothing to ensure safety in high-risk environments.

4. Application:

   • CSA Z96-22 is a broader, nationwide standard applicable to all of Canada for high-visibility safety apparel across various industries and environments.
   • OHSA Regulation 213/91 Sec 69.1(1)(4) applies specifically to Ontario and addresses workplace safety for workers in high-risk situations, with high-visibility clothing being one of the recommended safety measures.

Summary:

• CSA Z96-22 is a detailed standard for high-visibility clothing that provides clear classifications (Class 1, 2, 3) and exact specifications for reflective material and placement, making it a comprehensive guide for employers across Canada, especially in high-risk environments.

• OHSA Regulation 213/91 Sec 69.1(1)(4), on the other hand, is a general legal requirement in Ontario that mandates the use of high-visibility clothing for workers exposed to certain hazards, such as moving vehicles or machinery, but it leaves the specifics of the reflective material and garment design to be interpreted based on the context, often relying on CSA Z96-22 for guidance.

In short, CSA Z96-22 is a comprehensive, detailed standard, while OHSA Sec 69.1(1)(4) is a legal requirement that emphasizes safety without detailing the specifics of reflective clothing, often leaving that to CSA or similar standards.
