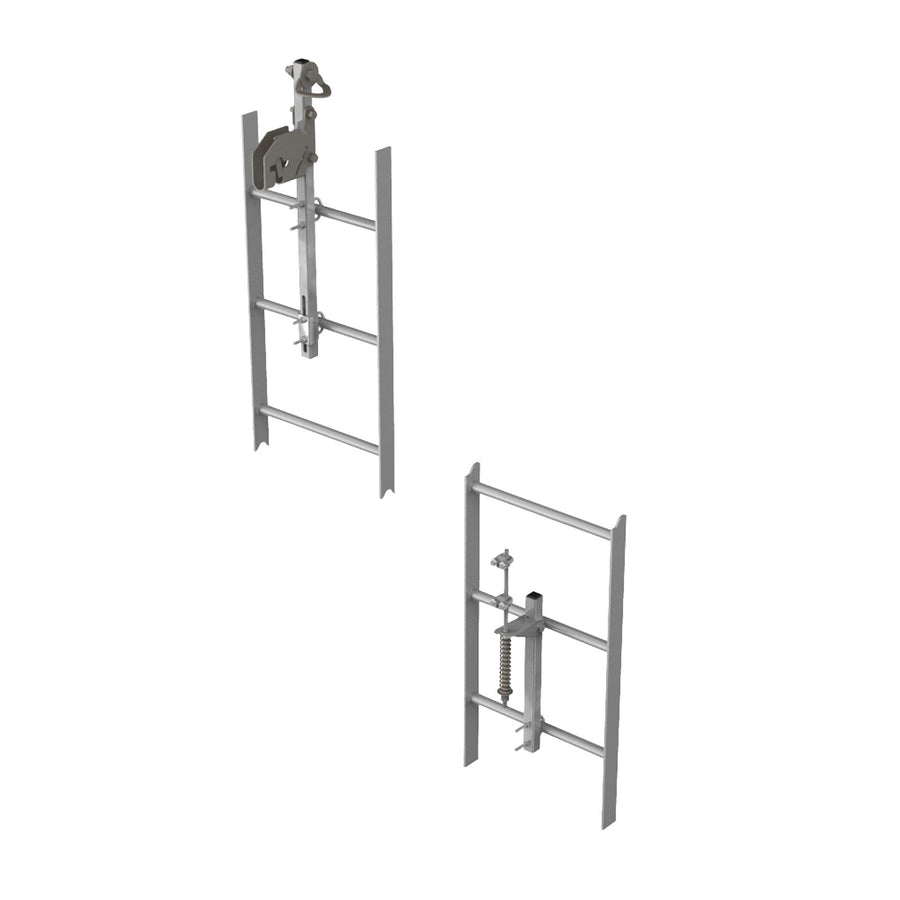

3M DBI-SALA Lad-Saf Cable Vertical Safety System 6119030, Stainless Steel, 30 ft (9.1 m), 1/Case
3M DBI-SALA Lad-Saf Cable Vertical Safety System 6119030, Stainless Steel, 30 ft (9.1 m), 1/Case
3M DBI-SALA Lad-Saf Cable Vertical Safety System 6119030, Stainless Steel, 30 ft (9.1 m), 1/Case is included in Keyline Safety’s Horizontal and Vertical Lifelines selection and ...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA Lad-Saf Cable Vertical Safety System 6119030, Stainless Steel, 30 ft (9.1 m), 1/Case is included in Keyline Safety’s Horizontal and Vertical Lifelines selection and our Fall Protection Equipment range.
The 3M DBI-SALA Lad-Saf Cable Vertical Safety System is a 2-user, galvanized steel vertical safety system (vertical lifeline) that meets ANSI Z359.16 standard, along with OSHA 1910.140 and 1926.502, when used with the 3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve 6160054 and 3M DBI-SALA Lad-Saf X2 Detachable Cable Sleeve 6160030. It includes the top and bottom brackets and 20’ (6.1 m) of swaged 3/8 in (9.5 mm) 1x7 galvanized steel cable.
The 3M DBI-SALA Lad-Saf Cable Vertical Safety System includes all brackets, pre-swaged cable, and cable guides. The 3M DBI-SALA Lad-Saf Cable Vertical Safety System has been reengineered to simplify and speed up the installation process, weighing less and with fewer loose parts than our previous models. Additionally, the top bracket provides 100% tie-off capability through its integrated fall arrest-rated anchor point rated to 3,600 lbs (1,633 kg). The 3M DBI-SALA Lad-Saf Cable Vertical Safety System is ideal for billboards and ladders, with mounting brackets that can be used on a variety of fixed ladder styles that may consist of different rung spacings and shapes. See the Technical Data Sheet (“TDS”) for more information, including operating temperature ranges, compatible rung spacings and shapes, weights, and dimensions, etc.
Specifications
| 3M ID | 7100184380 |
|---|---|
| SAP ID | 7100184380 |
| Legacy SKU | 70804494634 |
| Catalog Number | 6119030 |
| Biller - Article Number | 00840779163793 |
| Shipper - Article Number | 00840779163793 |
| Material Description (40 character max) | 6119030 KIT FLX SYS 30FT SS STG 3 |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines |
| Connector Material | Non Pertinent |
| Install Type | Permanent |
| Lifeline Length (Imperial) | 30.0 ft |
| Lifeline Length (Metric) | 9.14 m |
| Lifeline Material | Stainless Steel Cable |
| Maximum Number of Users | 2 |
| Overall Length (Metric) | 9.0 m |
| Overall Width (Imperial) | 0.375 in |
| Overall Width (Metric) | 9.525 mm |
| Product Color | Silver |
| Product Series | Lad-Saf |
| Product Type | Vertical Safety System Cable |
| Specifications Met | ANSI Z359.16 |
| Weight (Imperial) | 28.945 lb |
| Weight Capacity (Imperial) | 310.0 lb |
| Weight Capacity (Metric) | 140.0 kg |
| Country of Origin | United States |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 15 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Metric Gross Weight | 14.87 KG |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Shipper - Billing Unit | EA |
| Shipper - Customary Cubic Dimension | 3756.2500518701827 ci |
| Shipper - Customary Gross Weight | 32.782738386891296 lbs |
| Shipper - Customary Net Weight | 28.946695024874426 lbs |
| Shipper - Customary Height Dimension | 5.251968503937008 in |
| Shipper - Customary Length Dimension | 23.374015748031496 in |
| Shipper - Customary Width Dimension | 30.598425196850393 in |
| Shipper - Metric Cubic Dimension | 61553.91 CCM |
| Shipper - Metric Weight | 14.87 KG |
| Shipper - Metric Net Weight | 13.13 KG |
| Shipper - Metric Height Dimension | 13.34 CM |
| Shipper - Metric Length Dimension | 59.37 CM |
| Shipper - Metric Width Dimension | 77.72 CM |
| Shipper - Item Quantity | 1.0 |
| Shipper - Total Unit Quantity | 1.0 |
| Shipper - Previous Packaging Level Quantity | 1.0 |
| Shipper - Previous Packaging Level Unit | EA |
| Shipper - Unit | CS |
Key Features
- Designed to meet the requirements of ANSI Z359.16 standard, along with OSHA 1910.140 and 1926.502, when used with 3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve 6160054 and 3M DBI-SALA Lad-Saf X2 Detachable Cable Sleeve 6160030 Ordering is easy – the entire system sold in a single SKU, including both brackets, pre-swaged cable, and cable guides Reengineered to help simplify and speed up the installation process Fewer loose parts: Fewer than 13 separate components, up to 72% less than our previous comparable model Light – weighs less than our previous systems 100% tie-off capability: Integrated fall arrest-rated anchor point on top bracket rated to 3,600 lbs (1,633 kg) Flexible: Mounting brackets can be used on a variety of fixed ladder styles that may consist of different rung spacings and shapes Equipped with 3M Connected Safety ID (CSID), a pre-programed RFID tag that makes it easier to track and manage equipment using the 3M Inspection and Asset Management System (system available by subscription, details at https://www.3mcanada.ca/3M/en_CA/worker-health-safety-ca/connected-safety/
Product Details
| Manufacturer SKU | 6119030 |
| Product Group | Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines |
| Product Line | Lad-Saf |
| Safety Standards | ANSI Z359.16 |
| Package Quantity | 1 |
Other Details
SAP ID: 7100184380
Legacy SKU: 70804494634
Catalog Number: 6119030
Biller - Article Number: 00840779163793
Shipper - Article Number: 00840779163793
Material Description (40 character max): 6119030 KIT FLX SYS 30FT SS STG 3
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines
Connector Material: Non Pertinent
Install Type: Permanent
Lifeline Length (Imperial): 30.0 ft
Lifeline Length (Metric): 9.14 m
Lifeline Material: Stainless Steel Cable
Maximum Number of Users: 2
Overall Length (Metric): 9.0 m
Overall Width (Imperial): 0.375 in
Overall Width (Metric): 9.525 mm
Product Color: Silver
Product Series: Lad-Saf
Product Type: Vertical Safety System Cable
Specifications Met: ANSI Z359.16
Weight (Imperial): 28.945 lb
Weight Capacity (Imperial): 310.0 lb
Weight Capacity (Metric): 140.0 kg
Country of Origin: United States
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 15
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Metric Gross Weight: 14.87 KG
Base - Item Quantity: 1.0
Base - Unit: EA
Shipper - Billing Unit: EA
Shipper - Customary Cubic Dimension: 3756.2500518701827 ci
Shipper - Customary Gross Weight: 32.782738386891296 lbs
Shipper - Customary Net Weight: 28.946695024874426 lbs
Shipper - Customary Height Dimension: 5.251968503937008 in
Shipper - Customary Length Dimension: 23.374015748031496 in
Shipper - Customary Width Dimension: 30.598425196850393 in
Shipper - Metric Cubic Dimension: 61553.91 CCM
Shipper - Metric Weight: 14.87 KG
Shipper - Metric Net Weight: 13.13 KG
Shipper - Metric Height Dimension: 13.34 CM
Shipper - Metric Length Dimension: 59.37 CM
Shipper - Metric Width Dimension: 77.72 CM
Shipper - Item Quantity: 1.0
Shipper - Total Unit Quantity: 1.0
Shipper - Previous Packaging Level Quantity: 1.0
Shipper - Previous Packaging Level Unit: EA
Shipper - Unit: CS
