3M DBI-SALA Lad-Saf Cable Vertical Safety System Top Bracket D-ring Assembly 6100219, Galvanized Steel
3M DBI-SALA Lad-Saf Cable Vertical Safety System Top Bracket D-ring Assembly 6100219, Galvanized Steel
3M DBI-SALA Lad-Saf Cable Vertical Safety System Top Bracket D-ring Assembly 6100219, Galvanized Steel is included in Keyline Safety’s Horizontal and Vertical Lifelines selectio...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA Lad-Saf Cable Vertical Safety System Top Bracket D-ring Assembly 6100219, Galvanized Steel is included in Keyline Safety’s Horizontal and Vertical Lifelines selection and our Fall Protection Equipment range.

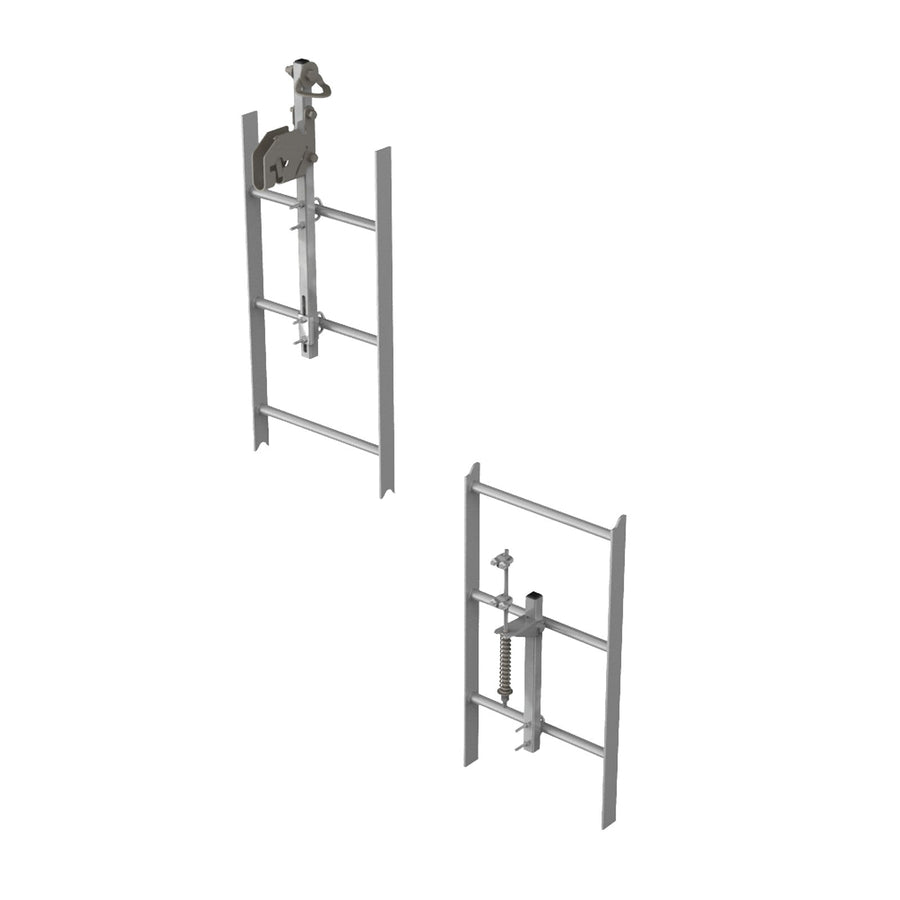

The 3M DBI-SALA Lad-Saf Cable Vertical Safety System is a 2-user, galvanized steel vertical safety system (vertical lifeline) that meets ANSI Z359.16 standard, along with OSHA 1910.140 and 1926.502, when used with the 3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve 6160054 and 3M DBI-SALA Lad-Saf X2 Detachable Cable Sleeve 6160030. It includes the top and bottom brackets and 20’ (6.1 m) of swaged 3/8 in (9.5 mm) 1x7 galvanized steel cable.
The 3M DBI-SALA Lad-Saf Cable Vertical Safety System includes all brackets, pre-swaged cable, and cable guides. The 3M DBI-SALA Lad-Saf Cable Vertical Safety System has been reengineered to simplify and speed up the installation process, weighing less and with fewer loose parts than our previous models. Additionally, the top bracket provides 100% tie-off capability through its integrated fall arrest-rated anchor point rated to 3,600 lbs (1,633 kg). The 3M DBI-SALA Lad-Saf Cable Vertical Safety System is ideal for billboards and ladders, with mounting brackets that can be used on a variety of fixed ladder styles that may consist of different rung spacings and shapes. See the Technical Data Sheet (“TDS”) for more information, including operating temperature ranges, compatible rung spacings and shapes, weights, and dimensions, etc.
Specifications
| 3M ID | 7100292449 |
|---|---|
| SAP ID | 7100292449 |
| Legacy SKU | 70007470209 |
| Catalog Number | 6100219 |
| Biller - Article Number | 00840779040445 |
| Consumer - Article Number | 00840779040445 |
| Material Description (40 character max) | 6100219 DR ASSY TP BRKT |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines |
| Anchor Connection Type | Bracket/Nut |
| Install Type | Permanent |
| Lifeline Length (Imperial) | 0.0 NP |
| Lifeline Length (Metric) | 0.0 NP |
| Lifeline Material | Galvanized Steel |
| Maximum Number of Users | Non Pertinent |
| Product Series | Lad-Saf |
| Weight Capacity (Imperial) | 3.6 lb |
| Weight Capacity (Metric) | 1632.9 kg |
| Country of Origin | United States |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 2 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 0.8 |
| Base - Customary Length Dimension | 8.0 |
| Base - Customary Width Dimension | 5.9 |
| Base - Metric Gross Weight | 1.038 KG |
| Base - Metric Height Dimension | 2.032 CM |
| Base - Metric Length Dimension | 20.32 CM |
| Base - Metric Width Dimension | 14.986 CM |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 37.760028275962064 ci |
| Consumer - Customary Gross Weight | 2.2883982814790294 lbs |
| Consumer - Customary Net Weight | 2.253124319529449 lbs |
| Consumer - Customary Height Dimension | 0.8 in |
| Consumer - Customary Length Dimension | 8.0 in |
| Consumer - Customary Width Dimension | 5.9 in |
| Consumer - Metric Cubic Dimension | 618.776 CCM |
| Consumer - Metric Net Weight | 1.022 KG |
| Consumer - Metric Height Dimension | 2.032 CM |
| Consumer - Metric Length Dimension | 20.32 CM |
| Consumer - Metric Width Dimension | 14.986 CM |
| Consumer - Item Quantity | 1.0 |
| Consumer - Total Unit Quantity | 1.0 |
| Consumer - Previous Packaging Level Quantity | 1.0 |
| Consumer - Previous Packaging Level Unit | EACH |
| Consumer - Unit | EA |
Key Features
- Designed to meet the requirements of ANSI Z359.16 standard, along with OSHA 1910.140 and 1926.502, when used with 3M DBI-SALA Lad-Saf X3 Detachable Cable Sleeve 6160054 and 3M DBI-SALA Lad-Saf X2 Detachable Cable Sleeve 6160030 Ordering is easy – the entire system sold in a single SKU, including both brackets, pre-swaged cable, and cable guides Reengineered to help simplify and speed up the installation process Fewer loose parts: Fewer than 13 separate components, up to 72% less than our previous comparable model Light – weighs less than our previous systems 100% tie-off capability: Integrated fall arrest-rated anchor point on top bracket rated to 3,600 lbs (1,633 kg) Flexible: Mounting brackets can be used on a variety of fixed ladder styles that may consist of different rung spacings and shapes Equipped with 3M Connected Safety ID (CSID), a pre-programed RFID tag that makes it easier to track and manage equipment using the 3M Inspection and Asset Management System (system available by subscription, details at https://www.3mcanada.ca/3M/en_CA/worker-health-safety-ca/connected-safety/
Product Details
| Manufacturer SKU | 6100219 |
| Product Group | Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines |
| Product Line | Lad-Saf |
| Package Quantity | 1 |
Other Details
SAP ID: 7100292449
Legacy SKU: 70007470209
Catalog Number: 6100219
Biller - Article Number: 00840779040445
Consumer - Article Number: 00840779040445
Material Description (40 character max): 6100219 DR ASSY TP BRKT
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Lifelines > Vertical Lifelines
Anchor Connection Type: Bracket/Nut
Install Type: Permanent
Lifeline Length (Imperial): 0.0 NP
Lifeline Length (Metric): 0.0 NP
Lifeline Material: Galvanized Steel
Maximum Number of Users: Non Pertinent
Product Series: Lad-Saf
Weight Capacity (Imperial): 3.6 lb
Weight Capacity (Metric): 1632.9 kg
Country of Origin: United States
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 2
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 0.8
Base - Customary Length Dimension: 8.0
Base - Customary Width Dimension: 5.9
Base - Metric Gross Weight: 1.038 KG
Base - Metric Height Dimension: 2.032 CM
Base - Metric Length Dimension: 20.32 CM
Base - Metric Width Dimension: 14.986 CM
Base - Item Quantity: 1.0
Base - Unit: EA
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 37.760028275962064 ci
Consumer - Customary Gross Weight: 2.2883982814790294 lbs
Consumer - Customary Net Weight: 2.253124319529449 lbs
Consumer - Customary Height Dimension: 0.8 in
Consumer - Customary Length Dimension: 8.0 in
Consumer - Customary Width Dimension: 5.9 in
Consumer - Metric Cubic Dimension: 618.776 CCM
Consumer - Metric Net Weight: 1.022 KG
Consumer - Metric Height Dimension: 2.032 CM
Consumer - Metric Length Dimension: 20.32 CM
Consumer - Metric Width Dimension: 14.986 CM
Consumer - Item Quantity: 1.0
Consumer - Total Unit Quantity: 1.0
Consumer - Previous Packaging Level Quantity: 1.0
Consumer - Previous Packaging Level Unit: EACH
Consumer - Unit: EA
