3M DBI-SALA Nano-Lok Connected Order Picker System, Alert, 3100274, 9.8 ft (3.0 m)
3M DBI-SALA Nano-Lok Connected Order Picker System, Alert, 3100274, 9.8 ft (3.0 m)
3M DBI-SALA Nano-Lok Connected Order Picker System, Alert, 3100274, 9.8 ft (3.0 m) is included in Keyline Safety’s Self-Retracting Lifelines selection and our Fall Protection Eq...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA Nano-Lok Connected Order Picker System, Alert, 3100274, 9.8 ft (3.0 m) is included in Keyline Safety’s Self-Retracting Lifelines selection and our Fall Protection Equipment range.

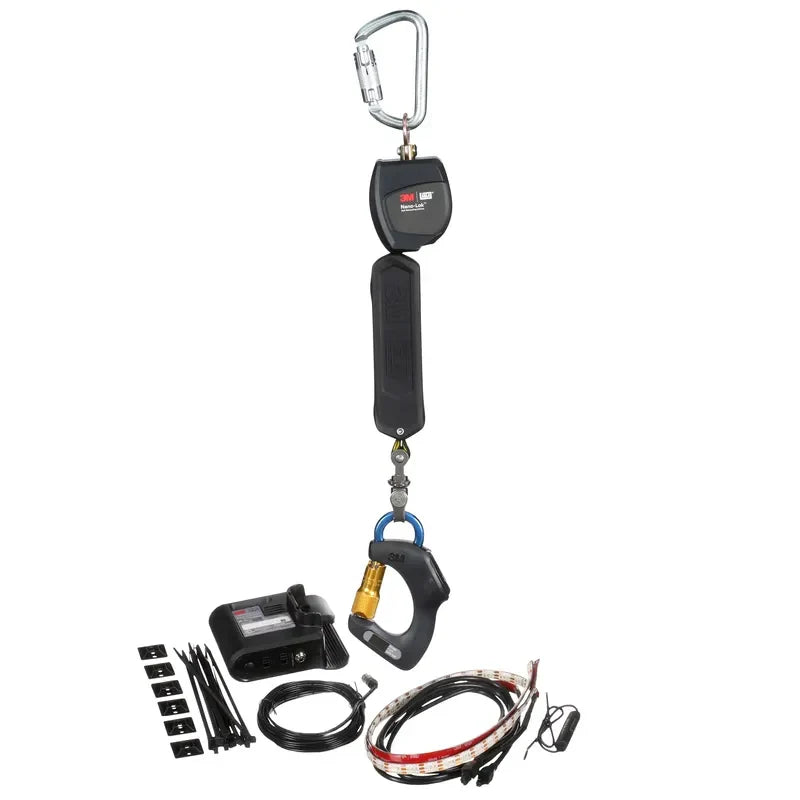

The 3M DBI-SALA Nano-Lok Connected Order Picker Alert System is an innovative Fall Protection system that senses a worker’s presence on an order picking vehicle, verifies their tie-off status, and communicates visual and audible alerts in real time to promote situational awareness and safe behavior. OEM dealer technician installation recommended but not required. System includes: 3M DBI-SALA Nano-Lok Connected Carabiner Self-Retracting Lifeline, Alert Sensor Box, Carabiner, Light Strips and Alert Sensor Box Power Cable
The 3M DBI-SALA Nano-Lok Self-Retracting Lifelines are rugged, yet lightweight and engineered devices that you can count on for comfortable and efficient fall protection. With stainless steel components, an anti-ratcheting brake system, and a semi-sealed design, this system is built to last. The lifeline extends as the user moves away and retracts automatically, allowing the user to move within a recommended working area at normal speeds. In the event of a fall, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user. These features are key safety improvements compared to the use of a lanyard. Available in multiple Self-retracting lifeline lengths.
Specifications
| 3M ID | 7012818446 |
|---|---|
| SAP ID | 7012818446 |
| Legacy SKU | 70804522202 |
| Catalog Number | 3100274 |
| Biller - Article Number | 00648250179666 |
| Consumer - Article Number | 00648250179666 |
| Material Description (40 character max) | 3100274 KIT SRL NANO XL CX CSA |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Lifelines > Self-retracting Lifelines |
| Anchor Connection Type | Cab-mount Carabiner |
| Harness Connection Type | Connected Carabiner |
| Housing Material | Nylon Thermoplastic |
| Install Type | Reusable or Permanent |
| Lifeline Length (Imperial) | 9.8 ft |
| Lifeline Length (Metric) | 3.0 m |
| Lifeline Material | Dynema Webbing |
| Maximum Number of Users | One |
| Overall Length (Imperial) | 9.8 ft |
| Overall Length (Metric) | 3.0 m |
| Product Series | Nano-Lok |
| Product Type | Connected Order Picker Self-retracting Lifeline System |
| Specifications Met | CSA Z259.2.2-17 |
| Weight Capacity (Imperial) | 310.0 lb |
| Weight Capacity (Metric) | 140.6 kg |
| Working Length (Imperial) | 8.1 |
| Working Length (Metric) | 2.5 |
| Country of Origin | China |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 2 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 9.25 |
| Base - Customary Length Dimension | 11.125 |
| Base - Customary Width Dimension | 8.625 |
| Base - Metric Gross Weight | 5.248 LB |
| Base - Metric Height Dimension | 9.25 IN |
| Base - Metric Length Dimension | 11.125 IN |
| Base - Metric Width Dimension | 8.625 IN |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Unit of Use - Previous Packaging Level Quantity | 1.0 |
| Unit of Use - Previous Packaging Level Unit | EACH |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 887.566 ci |
| Consumer - Customary Gross Weight | 5.248 lbs |
| Consumer - Customary Net Weight | 4.346 lbs |
| Consumer - Customary Height Dimension | 9.25 in |
| Consumer - Customary Length Dimension | 11.125 in |
| Consumer - Customary Width Dimension | 8.625 in |
| Consumer - Metric Cubic Dimension | 887.566 IN3 |
| Consumer - Metric Net Weight | 4.346 LB |
| Consumer - Metric Height Dimension | 9.25 IN |
| Consumer - Metric Length Dimension | 11.125 IN |
| Consumer - Metric Width Dimension | 8.625 IN |
| Consumer - Item Quantity | 1.0 |
| Consumer - Previous Packaging Level Quantity | 1.0 |
| Consumer - Previous Packaging Level Unit | EACH |
| Consumer - Unit | EA |
Key Features
- The sensing carabiner confirms a secure connection to the worker's harness D-ring, ensuring a safe and reliable attachment Connected Carabiner operates with a replaceable coin cell battery (CR2032 type), and power not required for basic SRL mechanical function LED lights provide low battery visual indication to ensure uninterrupted operation and enables real-time verification of the closure and locking status of the carabiner gate Visible at a distance, the LED lights turn red if a worker is not tied off and turn green when securely tied off The Sensor Box and Feedback Lights are powered by the order picker truck The components of the system can be easily maintained and/or replaced Swivel at both ends allowing freedom of movement while preventing web twist and wear Features a quick-activating speed-sensing brake, a high-capacity energy absorber and Dyneema abrasion resistant webbing The 3M DBI-SALA Nano-Lok Connected Order Picker System is compatible with major Order Picker Original Equipment Manufacturers (OEMs)
Product Details
| Manufacturer SKU | 3100274 |
| Product Group | Personal Protective Equipment > Fall Protection > Lifelines > Self-retracting Lifelines |
| Product Line | Nano-Lok |
| Safety Standards | CSA Z259.2.2-17 |
| Package Quantity | 1 |
Other Details
SAP ID: 7012818446
Legacy SKU: 70804522202
Catalog Number: 3100274
Biller - Article Number: 00648250179666
Consumer - Article Number: 00648250179666
Material Description (40 character max): 3100274 KIT SRL NANO XL CX CSA
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Lifelines > Self-retracting Lifelines
Anchor Connection Type: Cab-mount Carabiner
Harness Connection Type: Connected Carabiner
Housing Material: Nylon Thermoplastic
Install Type: Reusable or Permanent
Lifeline Length (Imperial): 9.8 ft
Lifeline Length (Metric): 3.0 m
Lifeline Material: Dynema Webbing
Maximum Number of Users: One
Overall Length (Imperial): 9.8 ft
Overall Length (Metric): 3.0 m
Product Series: Nano-Lok
Product Type: Connected Order Picker Self-retracting Lifeline System
Specifications Met: CSA Z259.2.2-17
Weight Capacity (Imperial): 310.0 lb
Weight Capacity (Metric): 140.6 kg
Working Length (Imperial): 8.1
Working Length (Metric): 2.5
Country of Origin: China
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 2
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 9.25
Base - Customary Length Dimension: 11.125
Base - Customary Width Dimension: 8.625
Base - Metric Gross Weight: 5.248 LB
Base - Metric Height Dimension: 9.25 IN
Base - Metric Length Dimension: 11.125 IN
Base - Metric Width Dimension: 8.625 IN
Base - Item Quantity: 1.0
Base - Unit: EA
Unit of Use - Previous Packaging Level Quantity: 1.0
Unit of Use - Previous Packaging Level Unit: EACH
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 887.566 ci
Consumer - Customary Gross Weight: 5.248 lbs
Consumer - Customary Net Weight: 4.346 lbs
Consumer - Customary Height Dimension: 9.25 in
Consumer - Customary Length Dimension: 11.125 in
Consumer - Customary Width Dimension: 8.625 in
Consumer - Metric Cubic Dimension: 887.566 IN3
Consumer - Metric Net Weight: 4.346 LB
Consumer - Metric Height Dimension: 9.25 IN
Consumer - Metric Length Dimension: 11.125 IN
Consumer - Metric Width Dimension: 8.625 IN
Consumer - Item Quantity: 1.0
Consumer - Previous Packaging Level Quantity: 1.0
Consumer - Previous Packaging Level Unit: EACH
Consumer - Unit: EA
