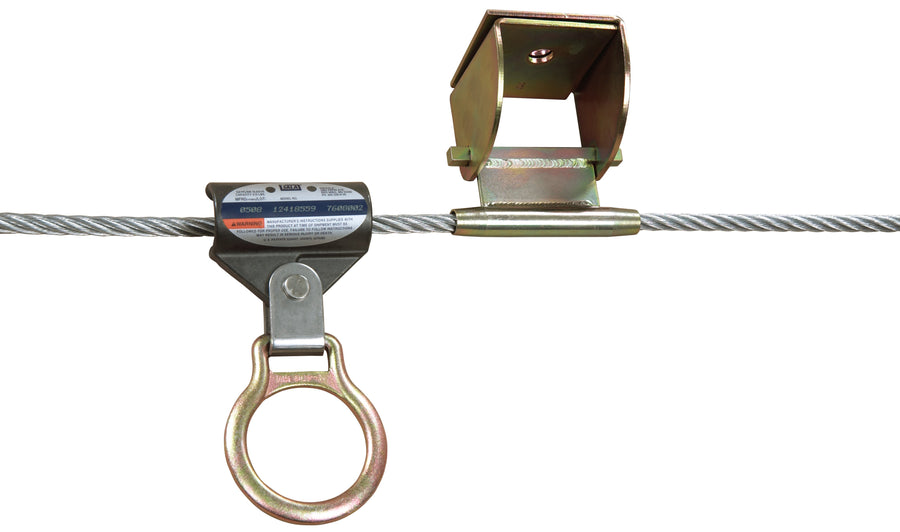

3M DBI-SALA Sayfline Permanent Multi-Span Cable Horizontal Lifeline System 7603020, 20 ft. (6.1 m)
3M DBI-SALA Sayfline Permanent Multi-Span Cable Horizontal Lifeline System 7603020, 20 ft. (6.1 m) is included in Keyline Safety’s Horizontal and Vertical Lifelines selection an...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA Sayfline Permanent Multi-Span Cable Horizontal Lifeline System 7603020, 20 ft. (6.1 m) is included in Keyline Safety’s Horizontal and Vertical Lifelines selection and our Fall Protection Equipment range.
3M DBI-SALA Permanent Multi-Span Cable Horizontal Lifeline System comes is multiple lengths available--all include one intermediate bracket, tensioner, mounting hardware and metal energy absorbers.
The multi span system is a simple and safe off the shelf permanent horizontal lifeline designed for user installation. It is customizable, including span length, total system length and even final installation position. The brackets are specifically designed so the system may be installed above, even with, or below the user. We offer a broad selection, as well as significant features in safety and productivity. A horizontal lifeline may appear to be a basic line strung between two anchors, but it is much more complex. It is critical to choose a system that has been precision engineered and tested to meet regulations. These systems are used to protect workers operating in the horizontal plane who may not have continuous access to suitable anchorage points.
Specifications
| 3M ID | 7012820321 |
|---|---|
| SAP ID | 7012820321 |
| Legacy SKU | 70007487922 |
| Catalog Number | 7603020 |
| Material Description (40 character max) | 7603020 SAYF 20FT PERM WIRE RP SYS ZORB |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Lifelines > Horizontal Lifelines |
| Install Type | Temporary/Portable |
| Lifeline Length (Imperial) | 20.0 ft |
| Lifeline Length (Metric) | 6.09 m |
| Lifeline Material | Galvanized Cable |
| Net Weight (Imperial) | 22.0 lb |
| Overall Length (Imperial) | 20.0 ft |
| Product Type | Permanent Multi-span Horizontal Lifeline System |
| Weight Capacity (Imperial) | 310.0 lb |
| Weight Capacity (Metric) | 141.0 kg |
| Country of Origin | China |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 15 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 25.25 |
| Base - Customary Length Dimension | 26.25 |
| Base - Customary Width Dimension | 5.0 |
| Base - Metric Gross Weight | 23.188 LB |
| Base - Metric Height Dimension | 25.25 IN |
| Base - Metric Length Dimension | 26.25 IN |
| Base - Metric Width Dimension | 5.0 IN |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 3314.063 ci |
| Consumer - Customary Gross Weight | 23.188 lbs |
| Consumer - Customary Net Weight | 21.968 lbs |
| Consumer - Customary Height Dimension | 25.25 in |
| Consumer - Customary Length Dimension | 26.25 in |
| Consumer - Customary Width Dimension | 5.0 in |
| Consumer - Metric Cubic Dimension | 3314.063 IN3 |
| Consumer - Metric Net Weight | 21.968 LB |
| Consumer - Metric Height Dimension | 25.25 IN |
| Consumer - Metric Length Dimension | 26.25 IN |
| Consumer - Metric Width Dimension | 5.0 IN |
| Consumer - Item Quantity | 1.0 |
| Consumer - Total Unit Quantity | 1.0 |
| Consumer - Previous Packaging Level Quantity | 1.0 |
| Consumer - Previous Packaging Level Unit | EACH |
| Consumer - Unit | EA |
Key Features
- Available in galvanized and stainless steel 3/8 in. (9.5 mm) 7x19 Available in multiple lengths with many system components Off the shelf permanent multi-span horizontal system designed for user installation Metal energy absorber limits fall arrest forces Flexible system capacity Equipped with RFID Sleeve provides hands-free operation (order model 7608002 separately) Customizable multi-span configurations
Product Details
| Manufacturer SKU | 7603020 |
| Product Group | Personal Protective Equipment > Fall Protection > Lifelines > Horizontal Lifelines |
| Package Quantity | 1 |
Other Details
SAP ID: 7012820321
Legacy SKU: 70007487922
Catalog Number: 7603020
Material Description (40 character max): 7603020 SAYF 20FT PERM WIRE RP SYS ZORB
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Lifelines > Horizontal Lifelines
Install Type: Temporary/Portable
Lifeline Length (Imperial): 20.0 ft
Lifeline Length (Metric): 6.09 m
Lifeline Material: Galvanized Cable
Net Weight (Imperial): 22.0 lb
Overall Length (Imperial): 20.0 ft
Product Type: Permanent Multi-span Horizontal Lifeline System
Weight Capacity (Imperial): 310.0 lb
Weight Capacity (Metric): 141.0 kg
Country of Origin: China
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 15
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 25.25
Base - Customary Length Dimension: 26.25
Base - Customary Width Dimension: 5.0
Base - Metric Gross Weight: 23.188 LB
Base - Metric Height Dimension: 25.25 IN
Base - Metric Length Dimension: 26.25 IN
Base - Metric Width Dimension: 5.0 IN
Base - Item Quantity: 1.0
Base - Unit: EA
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 3314.063 ci
Consumer - Customary Gross Weight: 23.188 lbs
Consumer - Customary Net Weight: 21.968 lbs
Consumer - Customary Height Dimension: 25.25 in
Consumer - Customary Length Dimension: 26.25 in
Consumer - Customary Width Dimension: 5.0 in
Consumer - Metric Cubic Dimension: 3314.063 IN3
Consumer - Metric Net Weight: 21.968 LB
Consumer - Metric Height Dimension: 25.25 IN
Consumer - Metric Length Dimension: 26.25 IN
Consumer - Metric Width Dimension: 5.0 IN
Consumer - Item Quantity: 1.0
Consumer - Total Unit Quantity: 1.0
Consumer - Previous Packaging Level Quantity: 1.0
Consumer - Previous Packaging Level Unit: EACH
Consumer - Unit: EA
