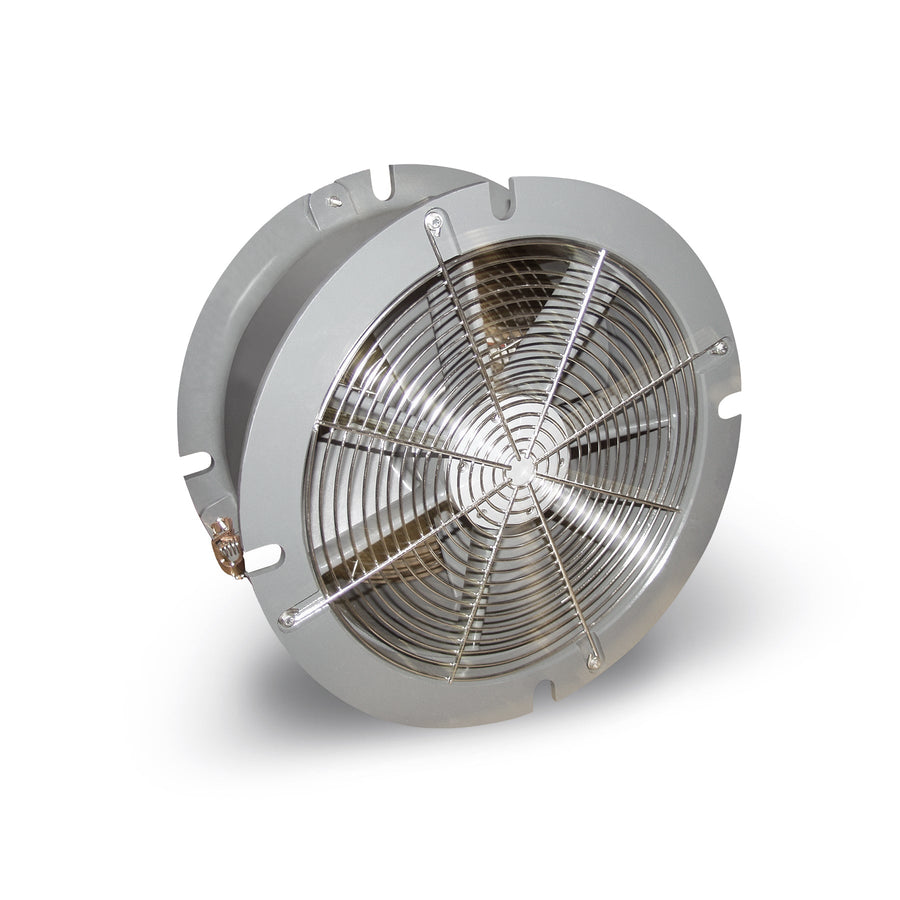

Keyline Safety lists Allegro 24" Jet Fan (11 3/4" x 32 3/4" diameter) in our Allegro Safety Products selection.

This heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting. Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20" model) or 16,000 CFM (24" model) at 100 psig quickly and efficiently. Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan. Added features include a 3/4" side-mounted inlet connector (20" model) or a 1" side-mounted inlet connector (24" model), a spark-resistant fan, and recessed handles for easy portability or it can be rolled.

Features

• Heavy duty aluminum fan and fan housing
• Available in two sizes
• Spark-resistant
• Heavy duty ball bearing
• Stainless steel fan shaft eliminates internal rust
• 10,500 CFM (17,840 m3/hr) for the 20” (50.8 cm) model, and 16,000 CFM (27,184 m3/hr) for the 24” (60.9 cm) model at 100 psig (6.9 Bar)
• The unit’s flange is designed to fit standard API tank openings
• OSHA standard safety screens
• Made in USA
• Operated by compressed air eliminating maintenance
• These units can be used as blowers or exhausters, by simply reverse mounting
• These blowers are easily transported from one place to another by using its recessed carry handles, or it may be rolled
• Heavy duty ball bearings are permanently lubricated and sealed for the life of the product

Applications

• Shipyard
• Industrial
• Manufacturing
• Utilities

Specifications

• SKU: 9518-24
• UPC: 741851951942
• Brand: ALLEGRO
• Category: Onsite Safety > Ventilation > Jet Fans
• Trade Name: Jet Fans
• Country of Origin: USA
• Motor HP: Pneumatic
• CFM: 11500
• M3 per hour: 19539
• M3 per min: 326
• Electrical Current: Pneumatic
• Duct: Not Included
• Configuration: EX
• Housing: Metal
• Blower Design: Jet Fan
• Phase: Single
• Hazardous Locations: No
• Diameter: 24"/61cm
• Outdoor Rated: Yes
