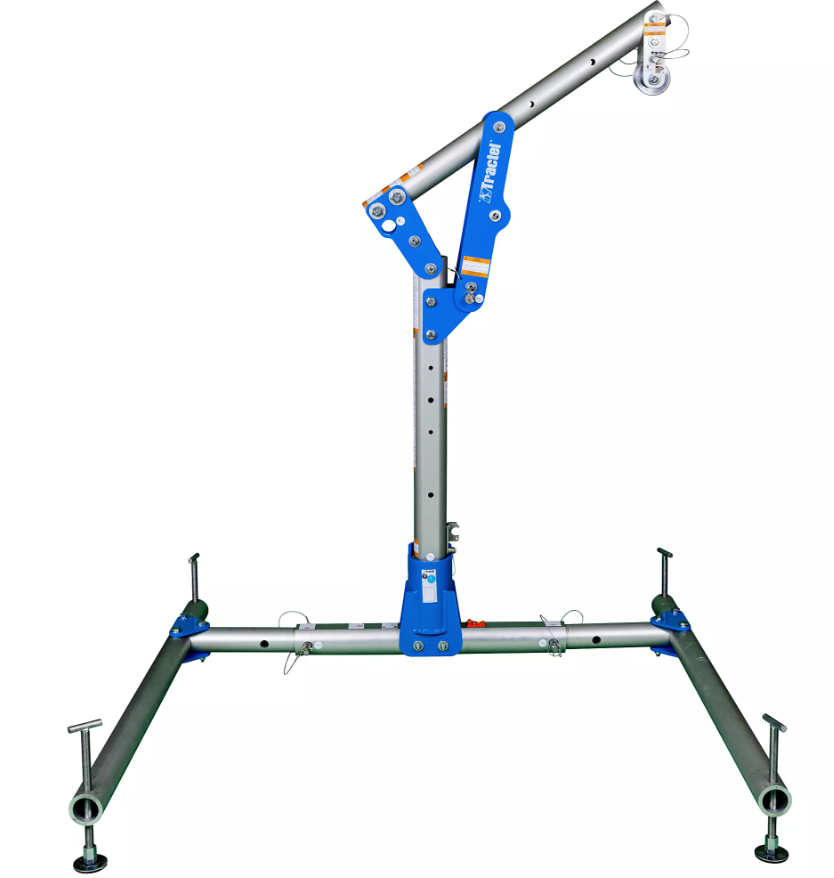

Tractel Davitrac Confined Space Davit Arm - DT1000 -1/CS

DAVITRAC^™ complete solution for access and work in confined spaces

The Davitrac^™ Confined Space Davit Arm is a complete solution for safe vertical rope access or material lifting in a confined space situation.
Mobile and efficient solution for rescue situations.
It offers protection and total mobility for up to two users simultaneously, during work involving a risk of falling.
The Confined Space Davit Kit is compatible with the Tractel^® product range allows a large number of possible configurations.

FLEXIBILITY

• Can be semi-permanent or permanent.
• Well suited for use as a transportable anchor point for working in confined spaces.
• Anchorage for up to two users
• Can be used for lifting materials.
• Different type of adapters.
• Modular: different combinations possible with lifting and fall arrest device Tractel^® products.

QUALITY

• Compact
• Easy to use
• Compatible for suspended work
• Rope access: manual or motorized
• Lifting material: manual or motorized

ERGONOMICS

• Easy handling / Very lightweight
• Easy to transport: integrated carrying handle
• Easy to install: installation by one person in less than
• two minutes without tools

SPECIFICATIONS

• Weight: 65.5 lb. (29,7 kg) without accessories and adapters.
• Each PPE anchor point rated up to 330 lb. (150 kg).
• Can be used by:
  • Up to two users up to 330 lb. (150 kg) each—one worker in the confined space and one worker operating the Davitrac^™—depending on the fall arrest system used. Each user must be secured on separated PPE anchor points.
  • A single user up to 330 lb. (150 kg) and a maximum material lifting capacity of 1,100 lb. (500 kg), depending on the systems used.
  • Material lifting maximum capacity 1,100 lb. (500 kg), depending on the lifting tools used.

APPLICATIONS

• Rescue
• Confined spaces
• Rope works
• Manholes
• Pits
• Sewerod access
• Pipes
• Oil and gas
• Civil engineering
• Industry
• Wind and solar installation
• Material Handling

APPLICABLE STANDARDS for Tractel's Confined Space Davit Kit:

• CSA Z259.15-17
• ANSI Z359.18-17
• Meets OSHA requirements
