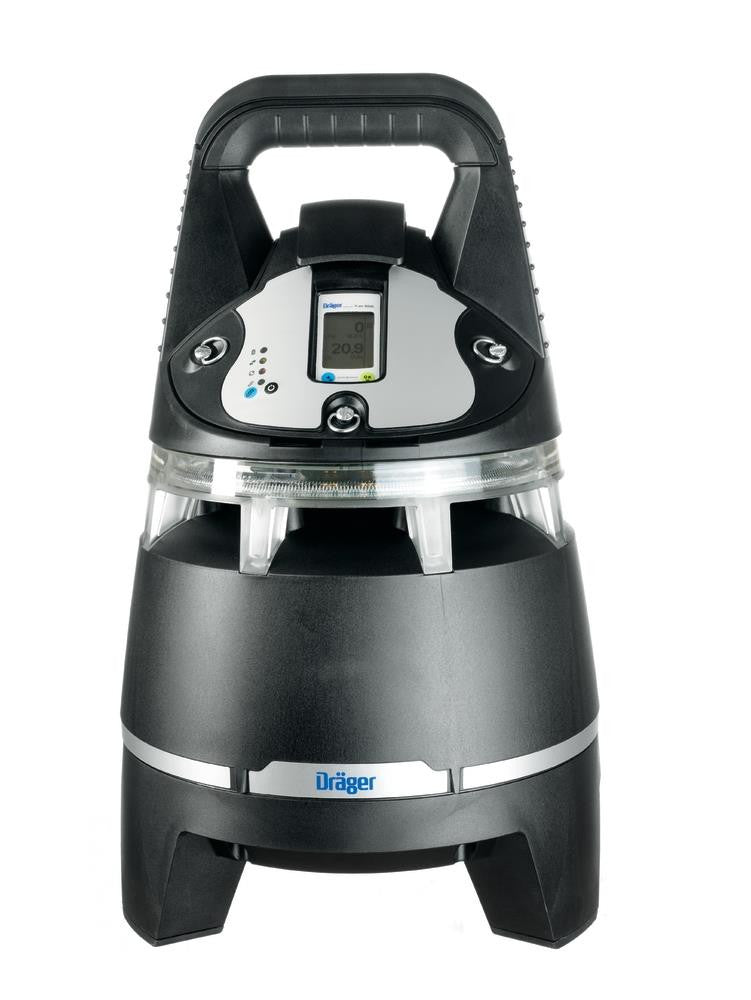

Drager X-Zone 5500 Area Gas Monitoring System - 8324823 -1/CS

• 360° gas entry

• Daily function test and calibration not required after single on-site testing

• Individually configurable with the Draeger CC-Vision PC software (e.g. alarm frequency)

• Inductive charging station: easy and convenient non-contact charging

• Continuous operation for up to 120 hours

INNOVATIVE AREA MONITORING

The Draeger X-zone 5500 transforms the Draeger X-am 5000/5100/5600 personal gas detection instruments into innovative area monitoring devices for a wide range of applications. In addition to personal air monitors carried on the body, these area monitors are positioned where gas hazards are expected to increase the level of safety.

CLEAR WARNING

The illuminated green LED ring indicates that the air is free of toxic and combustible gases. Upon detection of gas hazards, the LED color changes from green to red, thus providing a clear visual warning that gas is present. Additionally, a loud and highly audible evacuation alarm is emitted. The Draeger X-zone 5500 gas entry is arranged that the gas can diffuse into Draeger X-am gas monitors from all sides.

WIRELESS

Up to 25 Draeger X-zone 5500 units can be automatically interconnected to form an open wireless fenceline network. A closed network may be established for up to 16 X-zone 5500 units. The interconnection allows wide safety networks in larger areas. A Draeger X-zone 5500 detecting a gas alarm transmits the alarm signal to all interconnected units. A red flashing master alarm in the mother unit detecting gas contrasts with red/green flashing alarms of the connected daughter units providing simple recognition of alarm status and the actual location of the hazard.

PERFECT FOR CONFINED SPACES

An integrated pump version allows for continuous monitoring of confined spaces and locations which are difficult to access, even from a distance of up to 150 ft.

Dimensions (W × H × D)

490 × 300 × 300 mm 20 × 12 × 12 in.

Weight

10 kg (22 lbs.) (24 Ah battery)

Ambient conditions

-20 – +50 °C Pressure 700 to 1,300 hPa Humidity 10 to 95 % r.h.

Ingress Protection

IP67

Alarm

Visual 360° LED (illuminated ring)

Audible 360°; > 108 dB in a distance of 1 m (39 in.), 120 dB in a distance of 30 cm (1 ft.) Configurable alarm patterns, frequencies and volumes

Life signal

Green status display (360°), illuminated ring (LED)

Operating time

Approx. 120 h (24 Ah battery) Depending on sensor equipment / configuration of the life signal

Charging time

Approx. 14 h Flexible power supply: External 100 – 240 V charger (worldwide) or inductive wireless charger

Pump operation

Maximum hose length: 45 m (150 ft.) Alarm output Potential-free alarm contact for intrinsically safe circuits (6-pole); < 20 V to 0.25 A (0.15 A constant current); Resisting load

Radio transmission

Worldwide license-free ISM frequencies

Digital radio, robust and interference-free transmission up to 100 m (328 ft.)

RF approvals

915 MHz (USA, Canada)

Approvals

ATEX

• I M1 Ex ia I Ma
• II 1G Ex ia IIC T3 Ga
• II 2G Ex ia d IIC T4 Gb

IECEx

• Ex ia IIC T3 Ga
• Ex ia d IIC T4 Gb
• Ex ia I Ma

CSA/US

• Class I, zone 0, AEx ia IIC T3 Ga
• Class I, zone 1, AEx ia d IIC T4 Gb
