Product Description
Tractel Hydraulic tirfor 3.2 Ton 7,040 lbs to 12.8 Ton 28,160 lbs - TU32H is included in Keyline Safety’s Material Lifting and Hoists selection and our Fall Protection Equipment range.

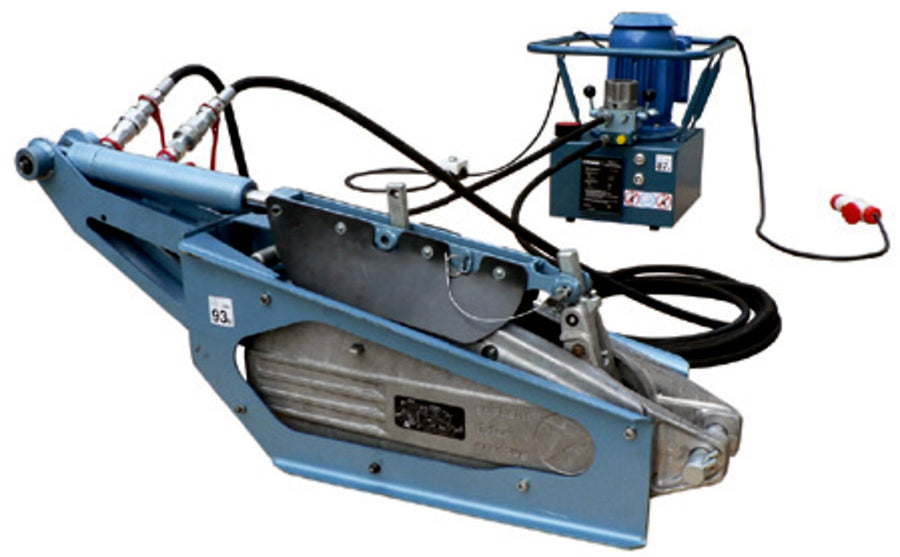

Hydraulic tirfor — TU32H (7,040 lbs. / 3,200 kg - 28,160 lbs. / 12,800 kg capacity)
This motorized hoist and winch combination adds increased power and speed while maintaining the portability and versatility that make the TU series of tirfor wire rope hoists so useful to fire & rescue crews.
Operates using a hydraulic cylinder powered by either an electrical power pack or a gas-motor power pack (not included), and one, two, or four hoists can operate from a single power pack.
The hydraulic TU32 tirfor can be used in numerous configurations and is the perfect solution for professional applications.
FEATURES
- Lightweight
- Fast and easy installation
- No limitation of wire rope length
- Reduced operator fatigue
- Variable speed control
- Overload protection
SPECIFICATIONS
-
Nominal capacity material handling:
- (A) 7,040 lbs. (3,200 kg)
- (B) 14,080 lbs. (6,400 kg)
- (C) 28,160 lbs. (12,800 kg)
-
Maximum speed per hoist:
- forward/lifting 3.25 ft. per min (1 m/min)
- reverse/lowering 5.9 ft. per min (1.8 m/min)
APPLICATIONS
- Construction
- Pipe Laying
- Steel Structures
- Industry
- Escalators & Elevators
- Electricity
- Bridges
- Mines & Quarries
- Shipbuilding
- Rail & Road
- Armed Forces
- Civil Defence & Rescue
- Agriculture
Key Features
- Lightweight Fast and easy installation No limitation of wire rope length Reduced operator fatigue Variable speed control Overload protection
Product Details
Other Details
/ 12,800 kg capacity) This motorized hoist and winch combination adds increased power and speed while maintaining the portability and versatility that make the TU series of tirfor wire rope hoists so useful to fire & rescue crews.
Lightweight Fast and easy installation No limitation of wire rope length Reduced operator fatigue Variable speed control Overload protection Nominal capacity material handling: ( A) 7,040 lbs.
(3,200 kg) (B) 14,080 lbs.
(6,400 kg) (C) 28,160 lbs.
(12,800 kg) Maximum speed per hoist: forward/lifting 3.25 ft.
per min (1.8 m/min) Construction Pipe Laying Steel Structures Industry Escalators & Elevators Electricity Bridges Mines & Quarries Shipbuilding Rail & Road Armed Forces Civil Defence & Rescue Agriculture
Nominal capacity material handling: ( A) 7,040 lbs. (3,200 kg) (B) 14,080 lbs. (6,400 kg) (C) 28,160 lbs. (12,800 kg)
Maximum speed per hoist: forward/lifting 3.25 ft. per min (1 m/min) r everse/lowering 5.9 ft. per min (1.8 m/min)
( A) 7,040 lbs. (3,200 kg)
