Product Description
3M DBI-SALA FlexiGuard C-Frame System, Adjustable Height 8517707, 1 ea is included in Keyline Safety’s Fall Protection Anchor Points selection and our Fall Protection Equipment range.

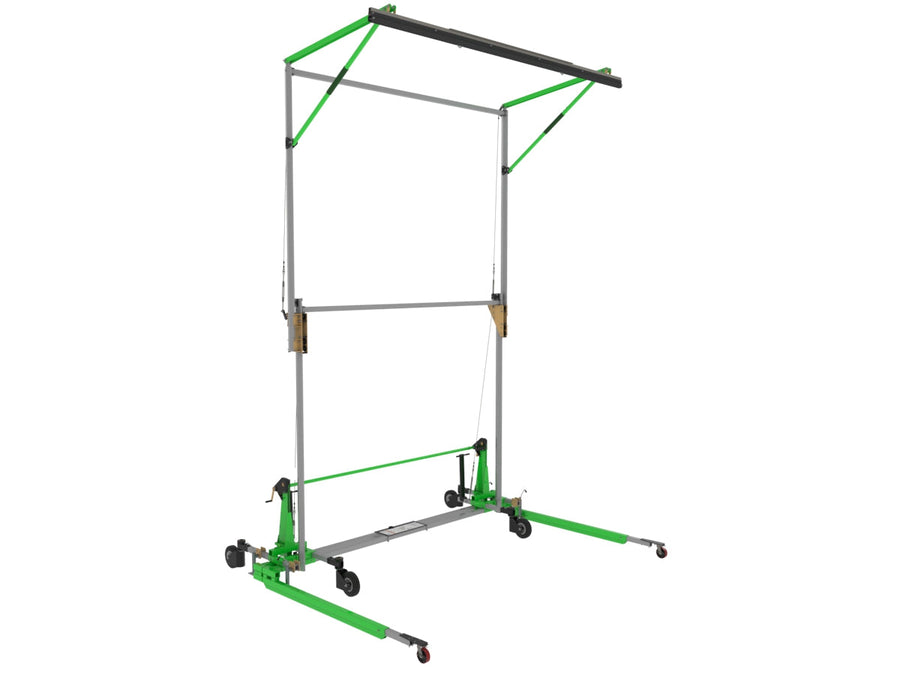

The Adjustable Height 3M DBI-SALA FlexiGuard C-Frame System helps protect workers from falls while providing a large working space. The rigid rail is made from durable extruded aluminum and is rated for use by up to two workers at once. Sitting atop pneumatic wheels, This mobile safety system can be easily moved from one job to the next by manual means or with the assistance of a tow bar and service vehicle.
Each Adjustable Height 3M DBI-SALA FlexiGuard C-Frame System includes one rail made with extruded aluminum. The single rail design is rated to support the weight of two workers in a fall arrest situation. The Adjustable Height system is great for areas without overhead obstructions or door height restrictions. The DBI-SALA FlexiGuard Solutions are designed to be versatile and mobile to help ensure workers' safety in a variety of challenging conditions. 3M's pre-engineered systems provide secure anchor points and spacious, safe working areas to help personnel focus on the task at hand while working at heights.
Specifications
| 3M ID | 7100220312 |
|---|---|
| SAP ID | 7100220312 |
| Legacy SKU | 70007495701 |
| Catalog Number | 8517707 |
| Biller - Article Number | 00840779006427 |
| Consumer - Article Number | 00840779006427 |
| Material Description (40 character max) | 8517707 PORT HORIZ SYS 16-26FT 15FT 16IN |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 29.63 ft |
| Maximum Height (Metric) | 9.03 m |
| Maximum Number of Users | Two |
| Overall Width (Imperial) | 15.52 ft |
| Overall Width (Metric) | 4.73 m |
| Product Color | Silver Yellow |
| Product Series | FlexiGuard |
| Product Type | C-Frame System - Adjustable Height |
| Weight (Imperial) | 2050.0 lb |
| Weight Capacity (Imperial) | 420.0 lb |
| Weight Capacity (Metric) | 190.0 kg |
| Country of Origin | United States |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 49 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 87.6736220472441 |
| Base - Customary Length Dimension | 87.6736220472441 |
| Base - Customary Width Dimension | 87.6736220472441 |
| Base - Metric Gross Weight | 1632.933 KG |
| Base - Metric Height Dimension | 222.691 CM |
| Base - Metric Length Dimension | 222.691 CM |
| Base - Metric Width Dimension | 222.691 CM |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 673915.717910176 ci |
| Consumer - Customary Gross Weight | 3600.001031763387 lbs |
| Consumer - Customary Net Weight | 3600.001031763387 lbs |
| Consumer - Customary Height Dimension | 87.6736220472441 in |
| Consumer - Customary Length Dimension | 87.6736220472441 in |
| Consumer - Customary Width Dimension | 87.6736220472441 in |
| Consumer - Metric Cubic Dimension | 11043.5 CDM |
| Consumer - Metric Net Weight | 1632.933 KG |
| Consumer - Metric Height Dimension | 222.691 CM |
| Consumer - Metric Length Dimension | 222.691 CM |
| Consumer - Metric Width Dimension | 222.691 CM |
| Consumer - Item Quantity | 1.0 |
| Consumer - Unit | EA |
Key Features
- Available in multiple adjustable size configurations Outrigger support legs require some clearance under equipment being accessed Aluminum and steel construction Extruded aluminum rail minimizes maintenance and includes two trolleys Conforms to OSHA 1926.502 and OSHA 1910.66 requirements Suitable for numerous applications within the aviation, transportation, construction, and mining industries One part of your fall protection system; intended for use with other personal protective equipment (PPE) including (but not limited to) harnesses and self retracting lifelines System includes four 16 in foam-filled rubber wheels System includes steel leveling jacks, with four 16 in. (40.6 cm) pneumatic wheels in the back and low profile 8 in. (20.3 cm) urethane caster wheels in the front Accessories available to suit worksite needs including optional non-swiveling pneumatic wheels or tow bar kit
Product Details
| Manufacturer SKU | 8517707 |
| Product Group | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Product Line | FlexiGuard |
| Package Quantity | 1 |
Other Details
SAP ID: 7100220312
Legacy SKU: 70007495701
Catalog Number: 8517707
Biller - Article Number: 00840779006427
Consumer - Article Number: 00840779006427
Material Description (40 character max): 8517707 PORT HORIZ SYS 16-26FT 15FT 16IN
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Portable Frames & Jibs
Install Type: Temporary/Portable
Maximum Height (Imperial): 29.63 ft
Maximum Height (Metric): 9.03 m
Maximum Number of Users: Two
Overall Width (Imperial): 15.52 ft
Overall Width (Metric): 4.73 m
Product Color: Silver
Yellow
Product Series: FlexiGuard
Product Type: C-Frame System - Adjustable Height
Weight (Imperial): 2050.0 lb
Weight Capacity (Imperial): 420.0 lb
Weight Capacity (Metric): 190.0 kg
Country of Origin: United States
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 49
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 87.6736220472441
Base - Customary Length Dimension: 87.6736220472441
Base - Customary Width Dimension: 87.6736220472441
Base - Metric Gross Weight: 1632.933 KG
Base - Metric Height Dimension: 222.691 CM
Base - Metric Length Dimension: 222.691 CM
Base - Metric Width Dimension: 222.691 CM
Base - Item Quantity: 1.0
Base - Unit: EA
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 673915.717910176 ci
Consumer - Customary Gross Weight: 3600.001031763387 lbs
Consumer - Customary Net Weight: 3600.001031763387 lbs
Consumer - Customary Height Dimension: 87.6736220472441 in
Consumer - Customary Length Dimension: 87.6736220472441 in
Consumer - Customary Width Dimension: 87.6736220472441 in
Consumer - Metric Cubic Dimension: 11043.5 CDM
Consumer - Metric Net Weight: 1632.933 KG
Consumer - Metric Height Dimension: 222.691 CM
Consumer - Metric Length Dimension: 222.691 CM
Consumer - Metric Width Dimension: 222.691 CM
Consumer - Item Quantity: 1.0
Consumer - Unit: EA
