3M DBI-SALA FlexiGuard Counterweighted System, 8517763, yellow/silver, 22 ft (6.7 m)
3M DBI-SALA FlexiGuard Counterweighted System, 8517763, yellow/silver, 22 ft (6.7 m)
3M DBI-SALA FlexiGuard Counterweighted System, 8517763, yellow/silver, 22 ft (6.7 m) is included in Keyline Safety’s Fall Protection Anchor Points selection and our Fall Protect...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA FlexiGuard Counterweighted System, 8517763, yellow/silver, 22 ft (6.7 m) is included in Keyline Safety’s Fall Protection Anchor Points selection and our Fall Protection Equipment range.

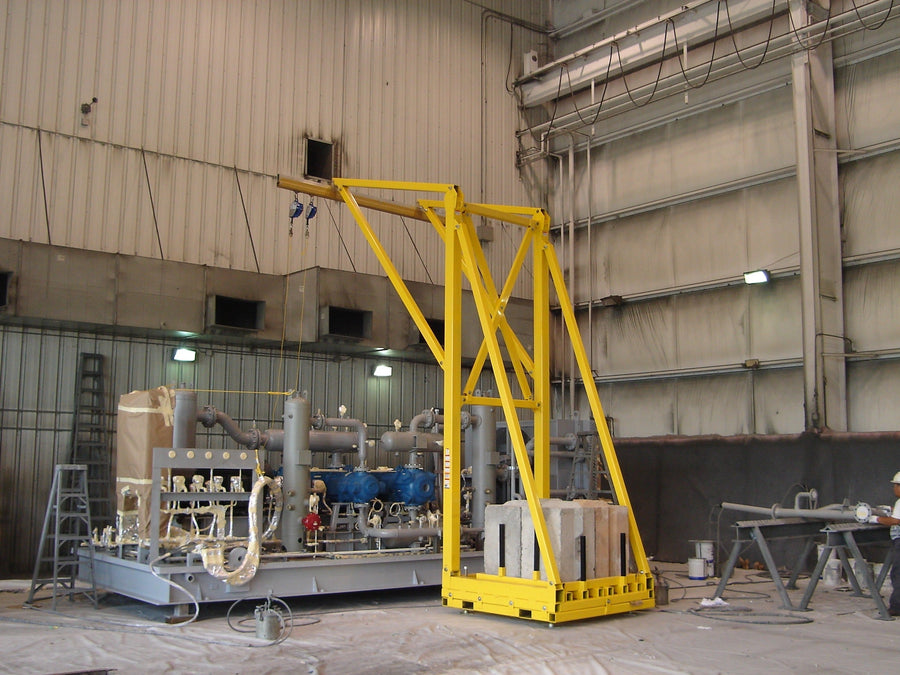

3M DBI-SALA FlexiGuard Counterweighted System with 22 ft. (6.7 m) anchor height and either 32 ft (9.8 m) or 42 ft. (12.8 m) rail.
The FlexiGuard Counterweighted System is designed as a portable solution to provide an overhead anchor point for up to two users while working at heights. These systems are designed to be counterbalanced by concrete or other means, allowing for close positioning to the work surface without obstructing the equipment being accessed. These systems conform to ANSI and OSHA requirements. Each solution is driven by our customers’ needs and is dependent on the industry, environment, and specific design constraints, including government standards. 3M's pre-engineered systems may be an ideal solution to your fall protection challenge. DBI-SALA FlexiGuard Solutions are designed to be versatile and mobile safety systems to help protect workers from the perils of at-height work in a variety of conditions. All the 3M DBI-SALA FlexiGuard safety system can be moved from job to job using forklift pockets on the base.
Specifications
| 3M ID | 7012777009 |
|---|---|
| SAP ID | 7012777009 |
| Legacy SKU | 70007496196 |
| Catalog Number | 8517763 |
| Material Description (40 character max) | 8517763 FLXGD HRZ RAIL SYS 22FTH 42FTW |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 23.55 ft |
| Maximum Height (Metric) | 7.18 m |
| Maximum Number of Users | Two |
| Net Weight (Imperial) | 3980.0 lb |
| Overall Width (Imperial) | 42.0 ft |
| Overall Width (Metric) | 12.8 m |
| Product Color | Silver Yellow |
| Product Series | FlexiGuard |
| Product Type | Counterweighted System |
| Weight (Imperial) | 3980.0 lb |
| Weight Capacity (Imperial) | 420.0 lb |
| Weight Capacity (Metric) | 190.0 kg |
| Country of Origin | United States |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 84 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 96.843 |
| Base - Customary Length Dimension | 96.843 |
| Base - Customary Width Dimension | 96.843 |
| Base - Metric Gross Weight | 14000.0 LB |
| Base - Metric Height Dimension | 96.843 IN |
| Base - Metric Length Dimension | 96.843 IN |
| Base - Metric Width Dimension | 96.843 IN |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 908248.5 ci |
| Consumer - Customary Gross Weight | 14000.0 lbs |
| Consumer - Customary Net Weight | 14000.0 lbs |
| Consumer - Customary Height Dimension | 96.843 in |
| Consumer - Customary Length Dimension | 96.843 in |
| Consumer - Customary Width Dimension | 96.843 in |
| Consumer - Metric Cubic Dimension | 908248.5 IN3 |
| Consumer - Metric Net Weight | 14000.0 LB |
| Consumer - Metric Height Dimension | 96.843 IN |
| Consumer - Metric Length Dimension | 96.843 IN |
| Consumer - Metric Width Dimension | 96.843 IN |
| Consumer - Item Quantity | 1.0 |
| Consumer - Unit | EA |
Key Features
- Counterweighted overhead rail fall protection system Aluminum and steel construction Complete hardware provided Portable with use of a forklift Includes four steel leveling jacks; built-in slope indicators available as option Recommended for a variety of applications within the transportation, construction, utilities, and mining industries Available in multiple sizes, both fixed and adjustable heights One part of your fall protection system; intended for use with other personal protective equipment (PPE) including (but not limited to) harnesses and self-retracting lifelines Specialized installation and training available Heavy duty leveling jacks and built-in slope indicators Custom paint finishes available Accessories available to suit worksite needs
Product Details
| Manufacturer SKU | 8517763 |
| Product Group | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Product Line | FlexiGuard |
| Package Quantity | 1 |
Other Details
SAP ID: 7012777009
Legacy SKU: 70007496196
Catalog Number: 8517763
Material Description (40 character max): 8517763 FLXGD HRZ RAIL SYS 22FTH 42FTW
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Portable Frames & Jibs
Install Type: Temporary/Portable
Maximum Height (Imperial): 23.55 ft
Maximum Height (Metric): 7.18 m
Maximum Number of Users: Two
Net Weight (Imperial): 3980.0 lb
Overall Width (Imperial): 42.0 ft
Overall Width (Metric): 12.8 m
Product Color: Silver
Yellow
Product Series: FlexiGuard
Product Type: Counterweighted System
Weight (Imperial): 3980.0 lb
Weight Capacity (Imperial): 420.0 lb
Weight Capacity (Metric): 190.0 kg
Country of Origin: United States
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 84
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 96.843
Base - Customary Length Dimension: 96.843
Base - Customary Width Dimension: 96.843
Base - Metric Gross Weight: 14000.0 LB
Base - Metric Height Dimension: 96.843 IN
Base - Metric Length Dimension: 96.843 IN
Base - Metric Width Dimension: 96.843 IN
Base - Item Quantity: 1.0
Base - Unit: EA
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 908248.5 ci
Consumer - Customary Gross Weight: 14000.0 lbs
Consumer - Customary Net Weight: 14000.0 lbs
Consumer - Customary Height Dimension: 96.843 in
Consumer - Customary Length Dimension: 96.843 in
Consumer - Customary Width Dimension: 96.843 in
Consumer - Metric Cubic Dimension: 908248.5 IN3
Consumer - Metric Net Weight: 14000.0 LB
Consumer - Metric Height Dimension: 96.843 IN
Consumer - Metric Length Dimension: 96.843 IN
Consumer - Metric Width Dimension: 96.843 IN
Consumer - Item Quantity: 1.0
Consumer - Unit: EA
