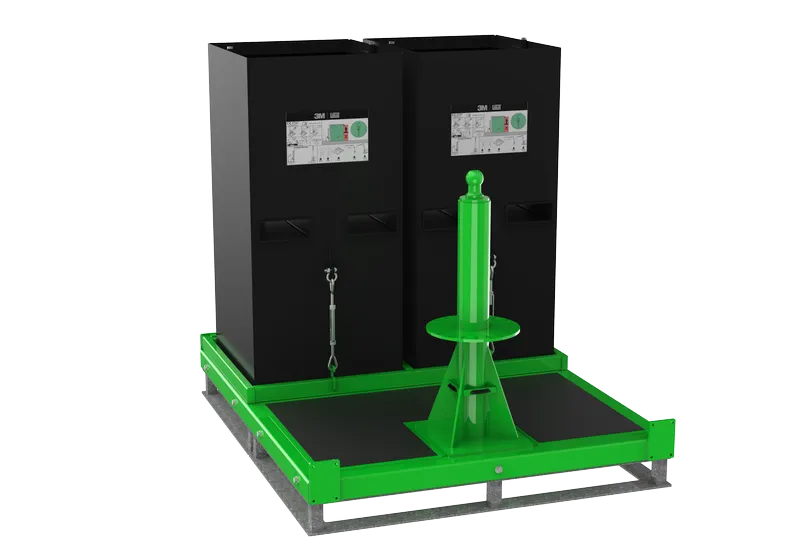

3M DBI-SALA FlexiGuard M200 Portable Counterweight Base 8530886, Single/Dual User, Without Concrete
3M DBI-SALA FlexiGuard M200 Portable Counterweight Base 8530886, Single/Dual User, Without Concrete
3M DBI-SALA FlexiGuard M200 Portable Counterweight Base 8530886, Single/Dual User, Without Concrete is included in Keyline Safety’s Fall Protection Anchor Points selection and o...
Wholesale Rewards MOQ: 1 PCS
| Order Value | Reward | Your Reward |
|---|---|---|
| Tier 1$5k | +$250Store credit | Earn $250 total store credit after this order is paid. |
| Tier 2$10k | +$250Store credit | Earn $500 total store credit after this order is paid. |
| Tier 3$15k+ | +$250Store credit | Earn $750 total store credit after this order is paid. |
Product Description
3M DBI-SALA FlexiGuard M200 Portable Counterweight Base 8530886, Single/Dual User, Without Concrete is included in Keyline Safety’s Fall Protection Anchor Points selection and our Fall Protection Equipment range.
The 3M DBI-SALA Flexiguard Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The 3M DBI-SALA FlexiGuard M200 Portable Counterweight Base design with removable counterweight box enables easier system mobility with a forklift.
The 3M DBI SALA Flexiguard Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
Specifications
| 3M ID | 7100271460 |
|---|---|
| SAP ID | 7100271460 |
| Legacy SKU | 70804530221 |
| Catalog Number | 8530886 |
| Biller - Article Number | 00648250177174 |
| Consumer - Article Number | 00648250177174 |
| Material Description (40 character max) | 8530886 BSE ASSY CW W/OUT CONC M200 |
| Global Product Hierarchy | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Install Type | Temporary/Portable |
| Maximum Height (Imperial) | 6.1 ft |
| Maximum Height (Metric) | 1.9 m |
| Maximum Number of Users | One or Two |
| Minimum Height (Imperial) | 6.1 ft |
| Minimum Height (Metric) | 1.9 m |
| Mounting Type | Surface |
| Net Weight (Imperial) | 2407.0 lb |
| Net Weight (Metric) | 1091.8 kg |
| Overall Height (Metric) | 1730.0 mm |
| Overall Length (Metric) | 2210.0 mm |
| Overall Width (Metric) | 180.0 mm |
| Product Color | Green |
| Product Series | M200 |
| Product Type | Portable Jib Base |
| Weight Capacity (Imperial) | 310.0 lb |
| Weight Capacity (Metric) | 141.0 kg |
| Country of Origin | United States |
| SAP Shelf Life In Days | 0 |
| Target Warehouse Location Lead Time | 91 |
| UNSPSC Tax Code | 46182300 |
| Base - Billing Unit | EA |
| Base - Customary Height Dimension | 71.0 |
| Base - Customary Length Dimension | 98.0 |
| Base - Customary Width Dimension | 87.0 |
| Base - Metric Gross Weight | 2500.0 LB |
| Base - Metric Height Dimension | 71.0 IN |
| Base - Metric Length Dimension | 98.0 IN |
| Base - Metric Width Dimension | 87.0 IN |
| Base - Item Quantity | 1.0 |
| Base - Unit | EA |
| Consumer - Billing Unit | EA |
| Consumer - Customary Cubic Dimension | 605348.4 ci |
| Consumer - Customary Gross Weight | 2500.0 lbs |
| Consumer - Customary Net Weight | 2500.0 lbs |
| Consumer - Customary Height Dimension | 71.0 in |
| Consumer - Customary Length Dimension | 98.0 in |
| Consumer - Customary Width Dimension | 87.0 in |
| Consumer - Metric Cubic Dimension | 605348.4 IN3 |
| Consumer - Metric Net Weight | 2500.0 LB |
| Consumer - Metric Height Dimension | 71.0 IN |
| Consumer - Metric Length Dimension | 98.0 IN |
| Consumer - Metric Width Dimension | 87.0 IN |
| Consumer - Item Quantity | 1.0 |
| Consumer - Unit | EA |
Key Features
- Powder coated steel upright and gusset components Extended rail-length increases safe working area compared to our previous jib systems Extended anchor height enhances capabilities in various applications compared to our previous jib systems Automatic mast lock helps prevents uncontrolled mast movement Aluminum extruded trolley rail Rotating mast up to 360 degrees with flip up rotation handle Permanent or portable mounted designs available Stainless steel / nylon construction Power assisted height adjustment capability for adjustable models Integrated level indicators (Counterweight Bases). Removable counterweight box (Counterweight Bases) with built in fork pockets and lifting ring attachment points (Lifting Kit sold separately). Open multi-directional base designed to accommodate a wide array of fork shapes and sizes 3M Safety-Walk Slip Resistant walking surface (counterweight Bases) Additional system mobility with optional caster wheel kit
Product Details
| Manufacturer SKU | 8530886 |
| Product Group | Personal Protective Equipment > Fall Protection > Portable Frames & Jibs |
| Product Line | M200 |
| Package Quantity | 1 |
Other Details
SAP ID: 7100271460
Legacy SKU: 70804530221
Catalog Number: 8530886
Biller - Article Number: 00648250177174
Consumer - Article Number: 00648250177174
Material Description (40 character max): 8530886 BSE ASSY CW W/OUT CONC M200
Global Product Hierarchy: Personal Protective Equipment > Fall Protection > Portable Frames & Jibs
Install Type: Temporary/Portable
Maximum Height (Imperial): 6.1 ft
Maximum Height (Metric): 1.9 m
Maximum Number of Users: One or Two
Minimum Height (Imperial): 6.1 ft
Minimum Height (Metric): 1.9 m
Mounting Type: Surface
Net Weight (Imperial): 2407.0 lb
Net Weight (Metric): 1091.8 kg
Overall Height (Metric): 1730.0 mm
Overall Length (Metric): 2210.0 mm
Overall Width (Metric): 180.0 mm
Product Color: Green
Product Series: M200
Product Type: Portable Jib Base
Weight Capacity (Imperial): 310.0 lb
Weight Capacity (Metric): 141.0 kg
Country of Origin: United States
SAP Shelf Life In Days: 0
Target Warehouse Location Lead Time: 91
UNSPSC Tax Code: 46182300
Base - Billing Unit: EA
Base - Customary Height Dimension: 71.0
Base - Customary Length Dimension: 98.0
Base - Customary Width Dimension: 87.0
Base - Metric Gross Weight: 2500.0 LB
Base - Metric Height Dimension: 71.0 IN
Base - Metric Length Dimension: 98.0 IN
Base - Metric Width Dimension: 87.0 IN
Base - Item Quantity: 1.0
Base - Unit: EA
Consumer - Billing Unit: EA
Consumer - Customary Cubic Dimension: 605348.4 ci
Consumer - Customary Gross Weight: 2500.0 lbs
Consumer - Customary Net Weight: 2500.0 lbs
Consumer - Customary Height Dimension: 71.0 in
Consumer - Customary Length Dimension: 98.0 in
Consumer - Customary Width Dimension: 87.0 in
Consumer - Metric Cubic Dimension: 605348.4 IN3
Consumer - Metric Net Weight: 2500.0 LB
Consumer - Metric Height Dimension: 71.0 IN
Consumer - Metric Length Dimension: 98.0 IN
Consumer - Metric Width Dimension: 87.0 IN
Consumer - Item Quantity: 1.0
Consumer - Unit: EA
